Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine

Product Categories
CLION ELECTRIC CO.,LTD
Contact Now

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine

  • 1
  • 2

Brand Name : NNC

Model Number : NHN-RF

Place of Origin : China

MOQ : 100pcs

Price : get latest price

Payment Terms : T/T

Supply Ability : 2k pcs 7 days

Delivery Time : 7-14 days

Theory : Relay Module

Input : NPN/PNP

Rated Voltage : 12VDC/24VDC/002VAC

Rated Current : 30A/40A

Mechanical Life : 1*10^7

Electrical Life : 1*10^5

Input Terminal : Lifting terminal

Output Terminal : Fence terminal

Contact Now

HNH-RF Series Relay Module

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machineClion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine

Specification

INPUT COIL PARAMETERS
Driving mode NPN/PNP
Rated voltage 12VDC/24VDC/220VAC
ingle power consumption DC:0.93W
Action voltage x80% Rated voltage
Release voltage x10% Rated voltage
Action time ≤10ms
Release tine ≤15ms
OUTPUT CONTACT PARAMETERS
Max switching voltage
250VAC/30VDC
Contact material Silver Alloy
Contact resistance ≤ 100mΩ(6VDC 1A)
Protection circuit RC
Mechanical life
1x10^7
Electrical life
 1x10^5
CONNECTOR
Strip length
 6mm
Torque
0.4Nm/(3.54Lb-in)
Input terminal type
 Lifting Terminal
Output terminal type
 Fence Terminal
Input wire diameter
2.5-4.0mm/AWG10-6
Output wire diameter
2.5-4.0mm/AWG10-6
WORKING TEMPERATURE -10~55°C
STORAGE TEMPERATURE -40~70°C

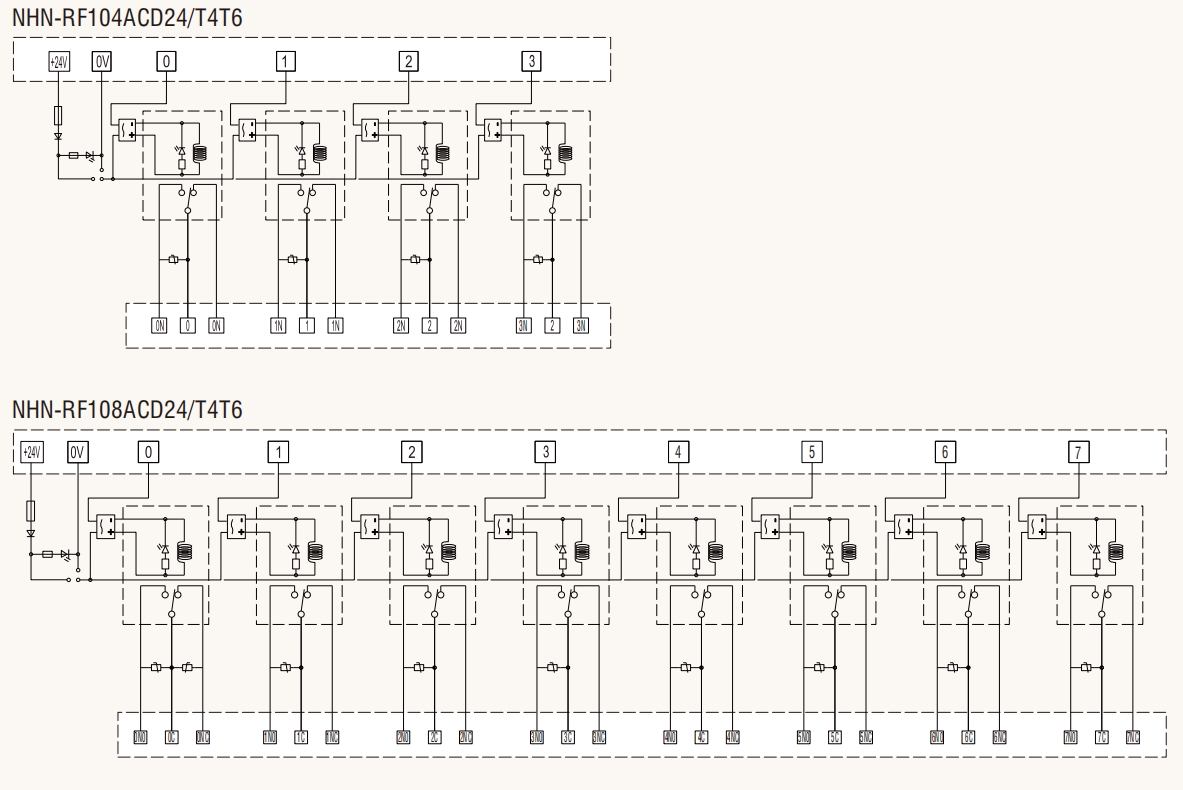

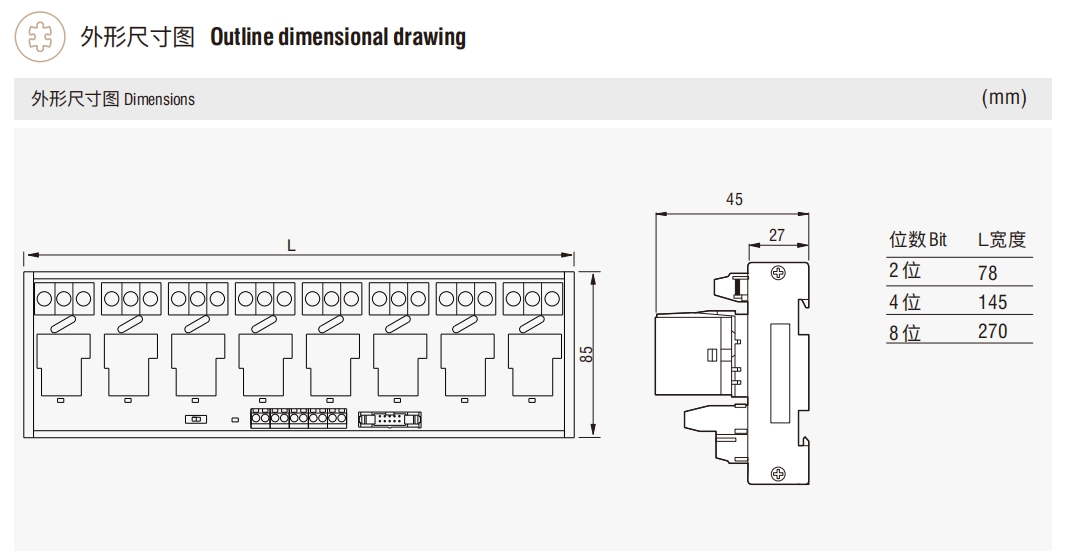

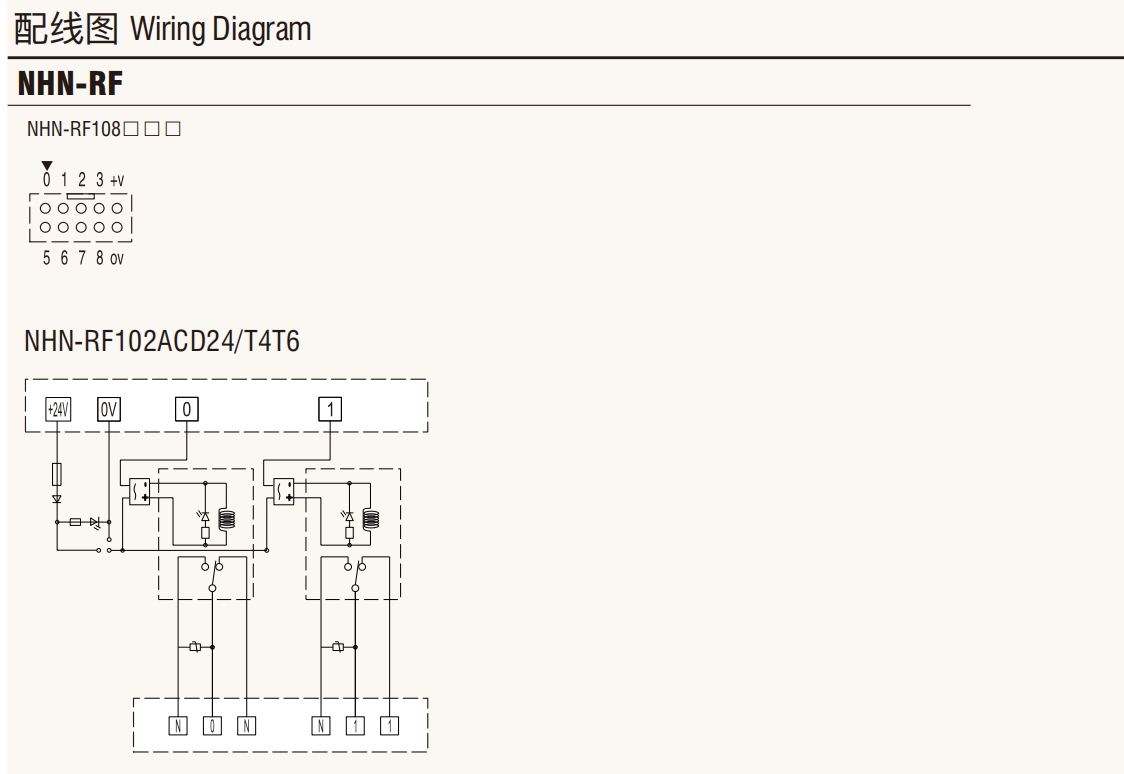

Diagram(mm)

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine

Certificate

Certificate

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine

Shipment & Packaging

Shipment & Packaging

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine

FAQ

FAQ

Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.

Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.

Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)

Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.

Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.

Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.

Q7: What is your warranty time of the products?
A7: 12-24 months
